Product Details

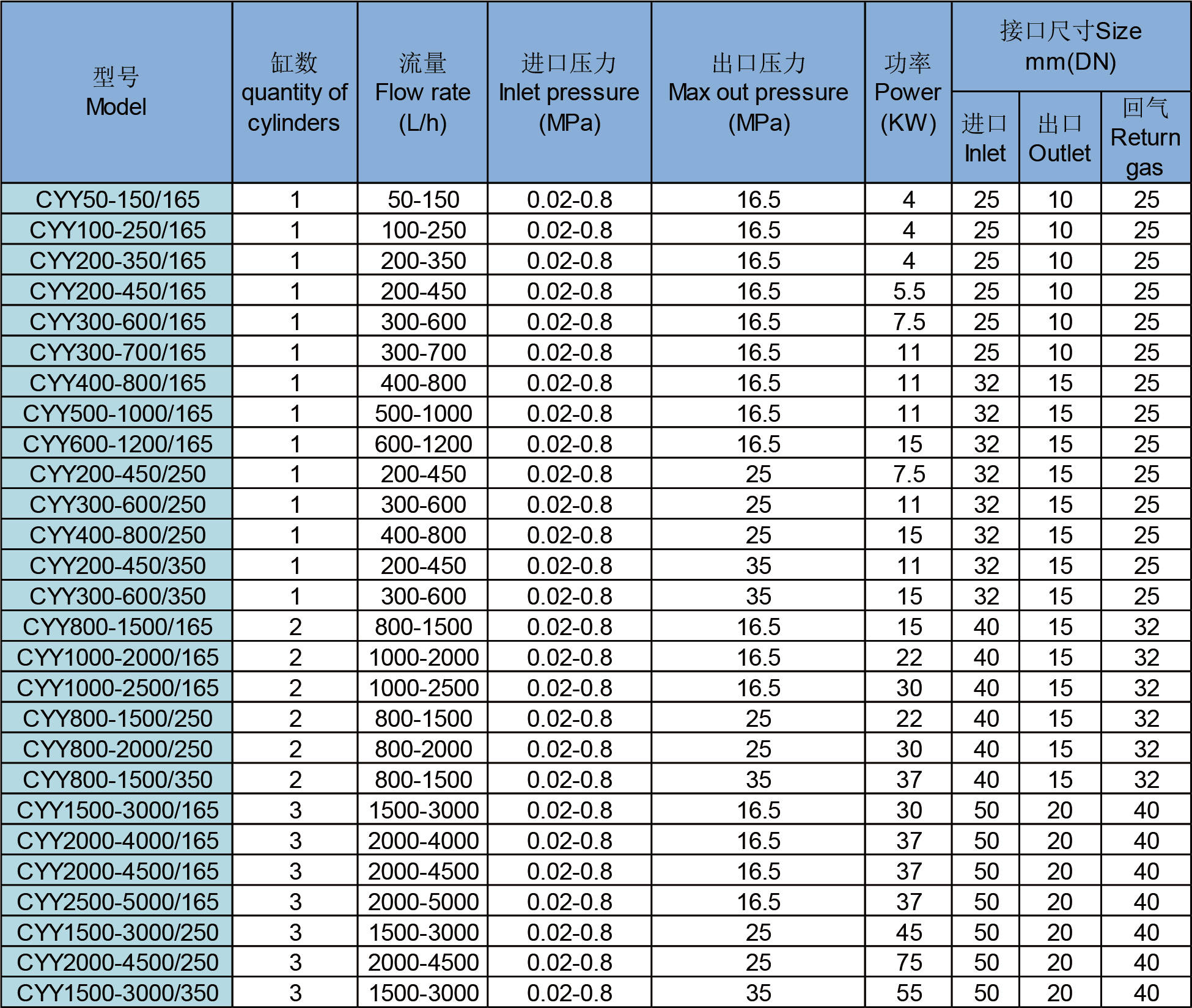

Main technical parameters :
1. Flow: 50-5000 L/h
2. Maximum exit pressure: 16.5 Mpa-35.0 MPa

Executive standard :
1. JB/T 9076 Specifications for Reciprocating Cryogenic Liquid Pumps
2. GB/T 9234 Power Reciprocating Pumps

Optional configuration:
1. Stationary motor/electromagnetic speed regulation/frequency control
2. Safety valve/cryogenic stop valveo
3. Back temperature interlocking device
4. Air outlet temperature interlocking device
5. Air outlet pressure interlocking device

Performance features:
1. A such pump has classic design and stable performances; its service life can reach 20 years.

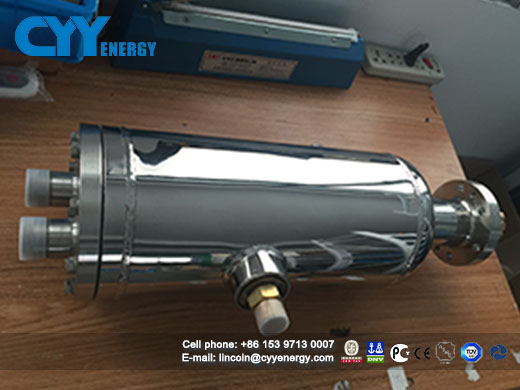

2. A high vacuum jacket pump head is used, and the vacuum degree reaches 10-5 torr so as to reduce cold loss.
3. Its seal is reliable: the service life of packing can each 150,000 times/cylinder and the service life of the piston ring is as long as 300,000 times/cylinder.
4. An auxiliary gas sealing device can be equipped to further enhance the service life of the sealingelement.
5. Maintenance is convenient: it merely takes two hours to perform a routine maintenance.
6. The pump can be continuously operated for 24 hours.
